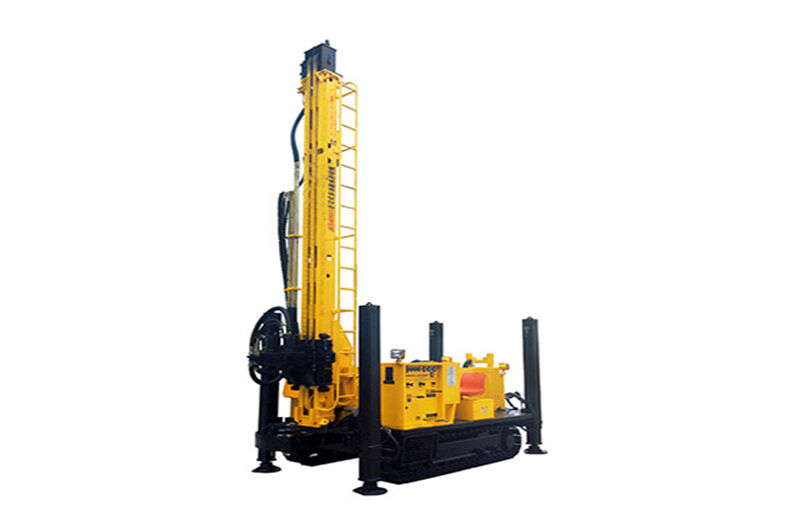

JKS500C Crawler Mounted Versatile Well Drilling Rig

The JKS500C is a powerful, multifunctional crawler drilling rig engineered for water wells, monitoring boreholes, geothermal boreholes, cofferdam/dam grouting and reinforced foundation works, as well as long-hole drilling in open pit operations. Its powerful hydraulic motor and heavy-duty drilling arm deliver faster penetration than conventional rig types.

Built for Speed and Heavy Duty

• High-pressure DTH percussive hammer accelerates drilling in rock formations.
• 25 t max lifting force and ±10 t axial pressure handle deep, heavy drill strings.
• Working air pressure 1.05-4.5 MPa with 16-60 m³/min air consumption for efficient flushing.
• Supports drill pipe diameters φ89 / φ102 / φ114 mm.
• Optional 4 t main winch increases casing and tool handling capacity.

Key Specifications

Ask for the JKS500C specification sheet and quotation today.
