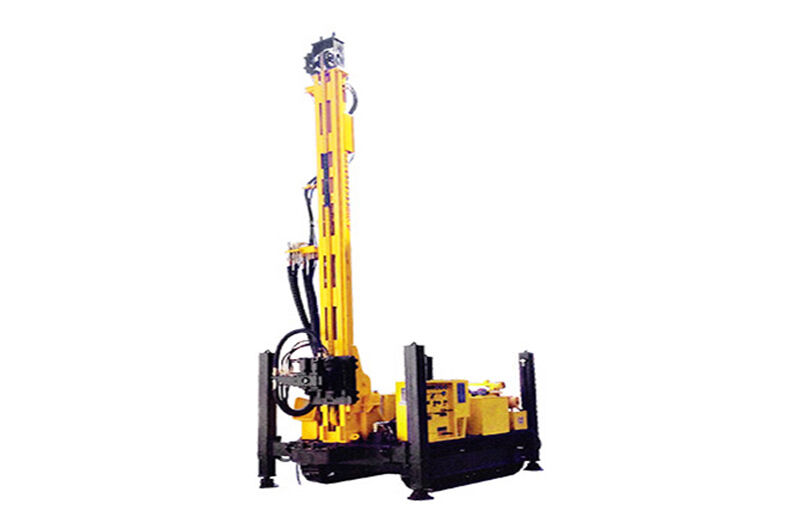

JKS500S Crawler Mounted Telescoping Mast Water Well Drilling Rig

The JKS500S is a high-efficiency crawler-mounted water well drilling rig designed for deep borehole drilling up to 500 meters. Powered by a Yuchai 132 kW engine and equipped with a unique telescoping mast and high-pressure hydraulic system, it delivers superior torque and lifting force for fast penetration in both rock and soil layers.

Versatile and Site-Ready

• DTH hammer with compressed air achieves penetration dozens of times faster than conventional mud rotary rigs in rock.
• Handles casing pipe up to 6 m for efficient well construction.
• Cutting bit / cone bit with mud circulation for loose layers and varied geology.
• Hydraulic supporting legs enable crane-free erection on site.
• Heavy-duty crawler chassis navigates muddy, uneven and mountainous terrain with ease.
• Adaptable for geothermal drilling, geological exploration and core sampling beyond water wells.

Key Specifications

Contact us for the JKS500S specification and a project-specific quotation today.
