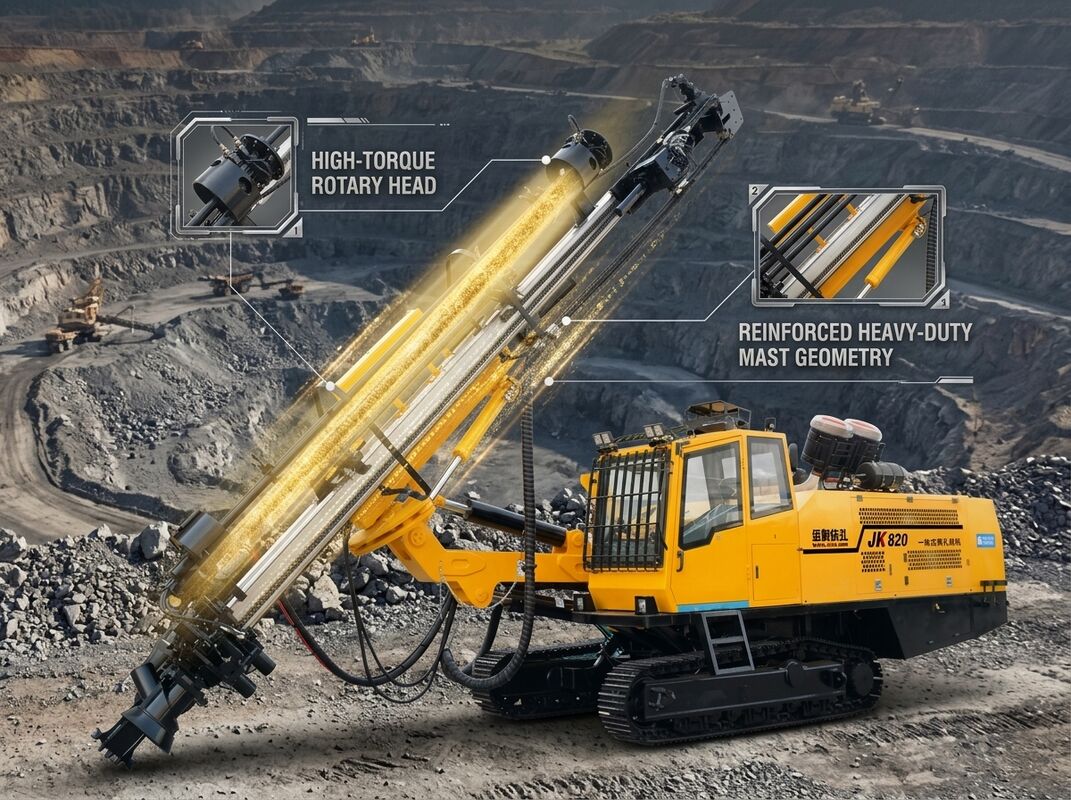

JK820-2 Integrated DTH Drilling Rig 140-190mm Hole 35m Depth Automatic Pipe Changer 6+1 Rod Capacity

This JK820-2 integrated DTH drilling rig is built for deep, large-diameter blast holes that smaller rigs cannot handle efficiently. With a drilling diameter range of 140-190 mm and a maximum depth of 35 meters, the rig is a strong fit for large open-pit mines, deep quarry benches, and heavy civil projects that require long production holes. The automatic pipe changer carries 6+1 drill pipes of 5 meters each, allowing the operator to make up and break out strings without leaving the cabin, which shortens cycle times and improves safety on the drill deck. The 21 ton machine uses a water-cooled six-cylinder EFI diesel engine and a feed system with 5895 mm stroke and a swing range from 36 degrees left to 95 degrees right for versatile hole positioning.

• 140-190mm Large Diameter: matches 5-7 inch DTH hammers for high-production blast hole drilling.
• 35m Drilling Depth: multi-pass capability with automatic pipe handling for deep bench layouts.
• Automatic Pipe Changer: 6+1 rod carousel reduces manual handling and speeds up pipe make-up cycles.
• 5m Drill Pipes: fewer joints per hole string means less connection time and better hole straightness.
• Wide Feed Swing: 36 to 95 degree swing range enables precise alignment on uneven bench terrain.
• 21 Ton Working Mass: heavy base provides stability for large hammers and reduces vibration transfer.

The JK820-2 is designed for large-scale surface mining and quarrying operations where 140-190 mm blast holes are the standard for production blasting. It performs reliably in iron ore, coal overburden, copper, and hard rock aggregate applications, and the 35 meter depth capability suits multi-bench drilling plans. The automatic rod handling system is particularly valuable in operations with high daily meterage targets, where manual pipe handling would otherwise become the bottleneck. Contractors working on deep foundation excavations and large infrastructure cuts also use this rig where hole size and depth exceed the capacity of smaller integrated machines.

Factory testing covers the full drilling cycle with the pipe carousel in operation, and each machine is delivered with a calibration certificate for the hydraulic and compressor systems. The rig ships in a 40ft flat rack or by RORO vessel with all loose components boxed and labeled. English operation and maintenance manuals, hydraulic schematics, and a spare parts list are included. Our service team provides remote commissioning assistance and can arrange a factory training visit for your drill crews before shipment.
