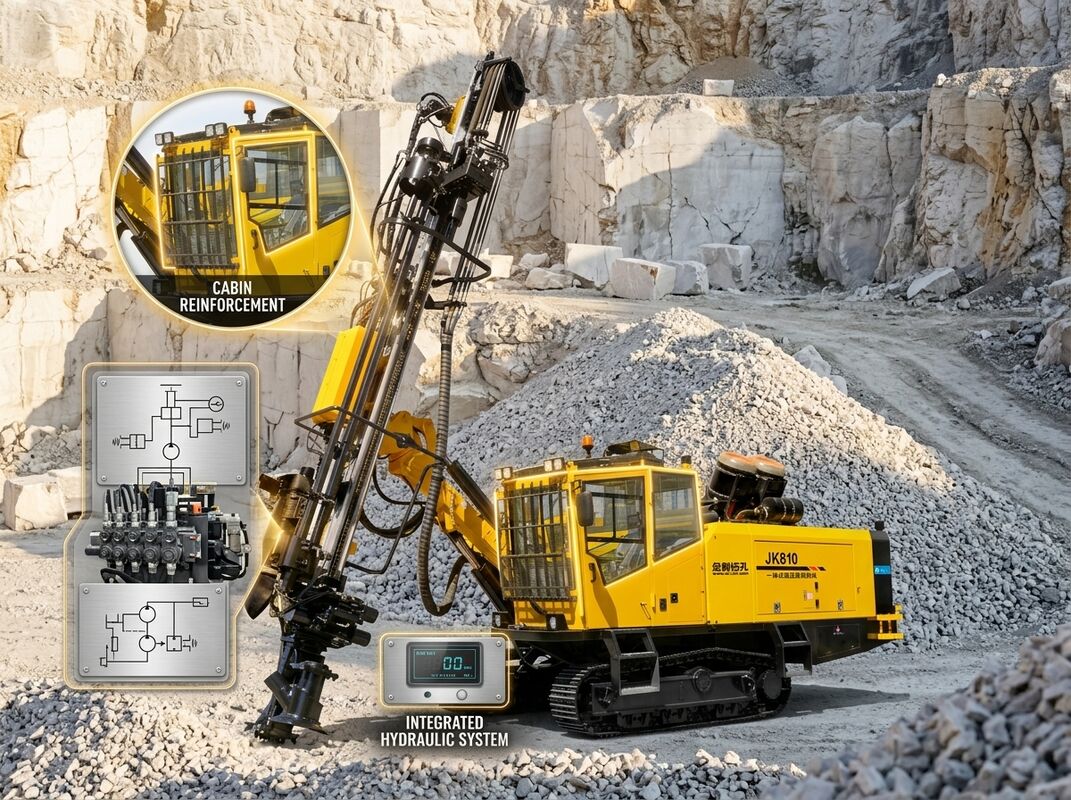

JK810 Integrated Hydraulic DTH Drilling Rig 90-165mm Blast Hole Cummins QSL8.9 Atlas Copco 20bar Compressor

This JK810 integrated hydraulic DTH drilling rig is a self-contained blast hole drilling solution that combines the drill, the air compressor, and the dust control system on a single crawler chassis. For quarry and open-pit operators, the integrated design removes the need for a separate compressor tow unit, which simplifies site logistics and reduces the number of machines that must be mobilized. The rig is powered by a Cummins QSL8.9-C360-30 diesel engine rated at 264 kW, driving both the hydraulic system and an Atlas Copco two-stage rotary screw air compressor that delivers 19.8 m3/min at 20 bar. This air output is sufficient to run DTH hammers drilling 90-165 mm blast holes through hard limestone, granite, and abrasive overburden.

• Integrated Compressor Design: Atlas Copco two-stage screw compressor mounted onboard eliminates separate compressor towing and setup time.
• Cummins QSL8.9 Engine: 264 kW of reliable diesel power with electronic fuel control and worldwide service support.
• 90-165mm Blast Hole Range: flexible drilling diameter coverage for production blasting in quarries and mines.
• 600L Fuel Capacity: extended operating shifts without refueling, ideal for remote pit locations.
• 350mm Wide Tracks: low ground pressure and strong gradeability for soft and uneven terrain.
• Full Hydraulic Control: precise mast positioning, feed control, and rotation speed adjustment from the operator cabin.

The JK810 is engineered for open-pit mining, quarry production blasting, and large infrastructure earthworks where blast hole drilling defines the pace of the whole operation. It handles vertical and inclined holes in hard rock, and the integrated compressor keeps the rig productive even when working far from a central air supply. Typical users include limestone and granite quarries, cement plants operating captive mines, and civil contractors drilling for rock excavation on highway and dam projects. The rig's ability to move under its own tracks between drill positions reduces non-drilling time and improves overall fleet efficiency.

Each JK810 is fully tested at the factory, including a compressor performance test, hydraulic pressure check, and a trial drilling run before disassembly for shipment. The rig is loaded in a 40ft flat rack container or by RORO vessel with professional lashing and protective wrapping. Documentation includes the CE declaration, engine certificate, and complete operation and maintenance manuals in English. Our engineers provide commissioning support on site or by video call, and spare parts for the Cummins engine and Atlas Copco compressor are available through global distribution networks.
