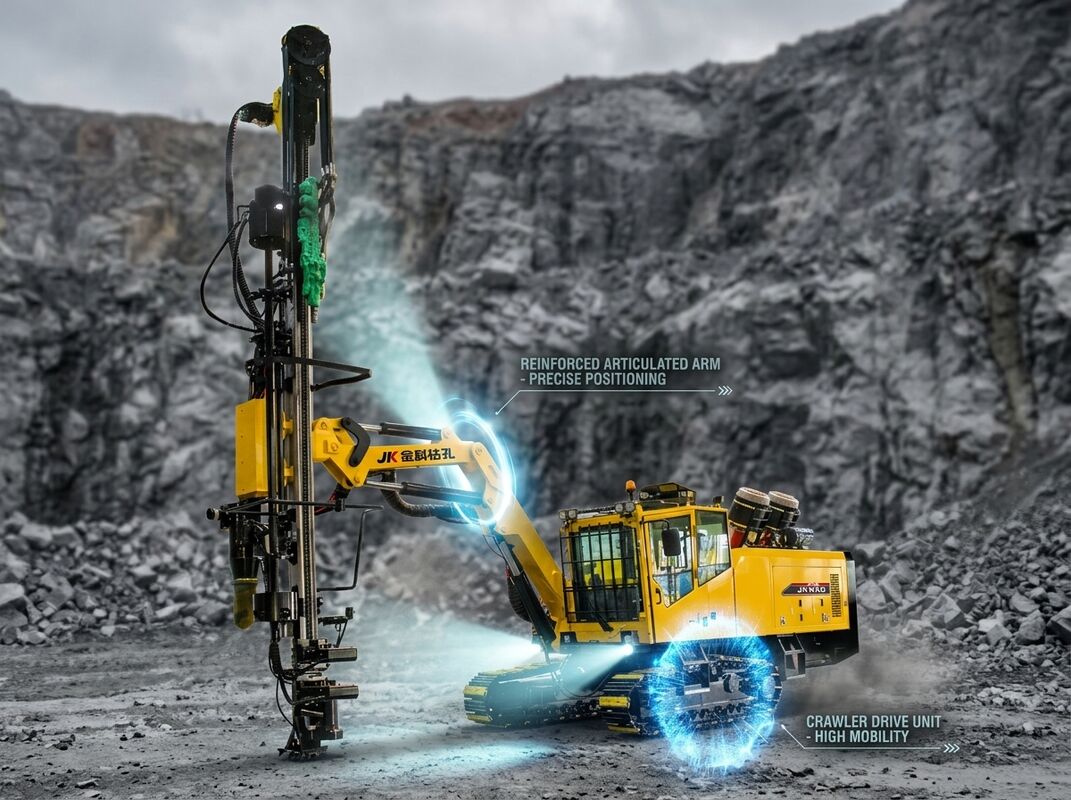

Quarry-Grade JK410 Crawler Mounted Pneumatic Tophammer Drill Rig 64-89mm Blast Hole Drilling

The Quarry-Grade JK410 crawler mounted pneumatic tophammer drill rig is purpose-built for high-frequency blast hole drilling in quarry and open pit operations. This new generation pneumatic top hammer machine, developed under the Sharp Sword series, delivers a dependable combination of penetration speed, mobility and low operating cost. Operators can drill boreholes from horizontal to vertical angles, which makes the unit equally effective for bench blasting, presplit drilling and secondary rock breaking. The compact 6-ton crawler chassis moves confidently over blasted rock floors, and the 220 J impact energy of the rock drill keeps advance rates high even in hard granite and basalt formations.

• Pneumatic Tophammer Power: Delivers reliable impact energy above 220 J with an air consumption of 215 L/S, producing fast penetration in medium-hard to hard rock.
• Crawler Mounted Mobility: The 2 km/h self-propelled crawler undercarriage climbs a 20-degree grade and moves safely across uneven quarry floors.
• Multi-Angle Drilling: The feed frame covers boreholes from horizontal to vertical, supporting presplit, production and drainage hole patterns.
• Heavy-Duty Feed System: A 4100 mm feed stroke with 18 kN lifting force and 12 kN feeding force keeps rod handling stable and accurate.
• Optional Dust Control: A dry type dust collector or wet type water-fed system can be fitted to meet local environmental requirements.
• Simple Maintenance: The open frame layout gives fast access to the rock drill, hydraulic valves and air lines, reducing daily service time.

The JK410 quarry drilling rig is widely used in aggregate quarries, limestone and sandstone mines, cement raw material pits and small open pit operations. It handles production blastholes of 64-89 mm, presplit holes along final pit walls and drainage holes on bench floors. The ability to drill angled holes also makes it useful for rock fall protection works and foundation excavation in civil projects.

The rig is delivered with export seaworthy packing, either in a 40ft flat rack container or by RORO vessel. Each machine is test-run and inspected before shipment, and full documentation including CE declaration and ISO 9001:2015 quality certificates is provided. Spare parts for the rock drill, air system and undercarriage are kept in stock to support fast after-sales response.
