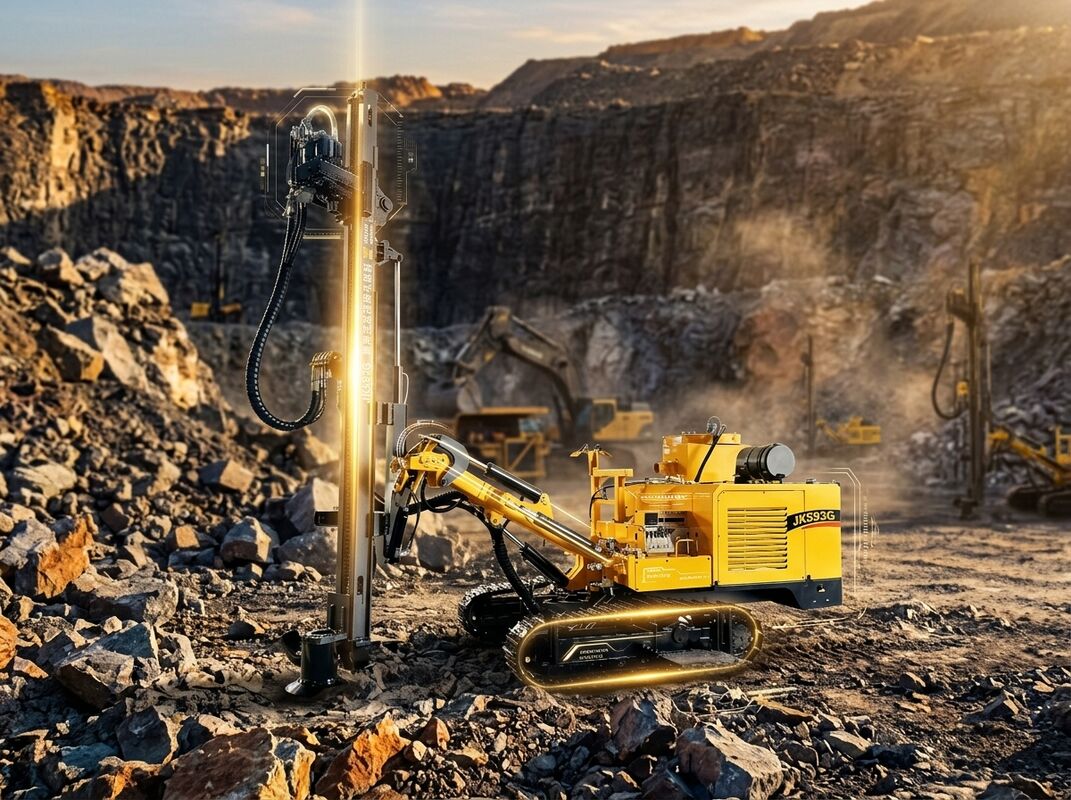

Mine-Site JK930 Fully Hydraulic Tophammer Drill Rig HC150 Rock Drill 25m Auto Rod Changer

The Mine-Site JK930 fully hydraulic tophammer drill rig is a high-performance production drilling unit built for open pit mines and large quarries. At its core is the French Montabert HC150 hydraulic rock drill with 21 kW of impact power, delivering fast penetration in hard abrasive rock. The automatic rod changing carousel stores seven T45 or T51 rods of 3660 mm, allowing one-time drilling to 25 meters without manual handling. Power comes from a Cummins QSC8.3-C260-30 engine rated at 194 kW, matched with an Atlas Copco screw compressor that provides 10 m3/min of flushing air. The result is a complete, self-contained drilling package that keeps bench production moving.

• Montabert HC150 Drifter: 21 kW impact power with adjustable frequency provides excellent penetration in hard rock.
• Automatic Rod Changer: A 7-rod carousel changes T45/T51 rods automatically, cutting auxiliary time and operator effort.
• One-Time 25m Drilling: Full depth holes are drilled in a single pass sequence without manual rod handling.
• Cummins Tier Power: The 194 kW Cummins QSC8.3 engine delivers reliable power with easy maintenance access.
• Integrated Compressor: The Atlas Copco screw compressor supplies 10 m3/min for efficient hole flushing.
• Folding Reinforced Boom: Multi-angle boom coverage handles vertical, horizontal and inclined production holes.

This rig is applied in open pit metal mines, large aggregate quarries, cement mines and infrastructure projects requiring high-capacity production drilling. It drills 76-115 mm blastholes on benches up to 25 m, including presplit holes and buffer rows. The automatic rod handling makes it especially effective where high daily meterage targets must be met with limited crews.

The machine is shipped with export seaworthy packing in a 40ft flat rack container or by RORO vessel. Each unit is factory tested with the rod carousel and drilling functions verified before dispatch. Full documentation, operator training and a fast-moving spare parts program support mining customers worldwide.
